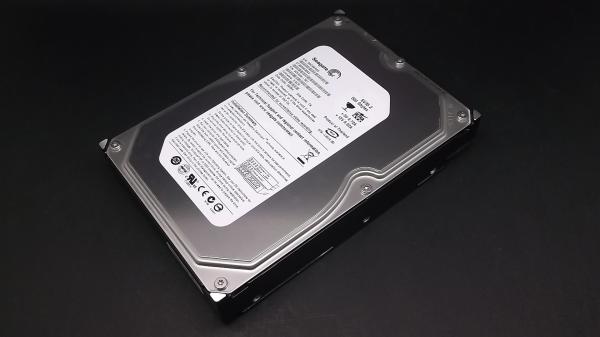

Seagate ST3500630AV 500GB PATA (IDE, UDMA, EIDE) Hard Disk Drives

ST3500630AV product summary

SEAGATE 500GB PATA SV HDD

Manufacturer
Seagate
Interface Group
PATA (IDE, UDMA, EIDE)
Interface
IDE
Physical Size
3.5in x 25mm
Capacity
500GB
Speed
7,200RPM

Seagate ST3500630AV 500GB PATA (IDE, UDMA, EIDE) Hard Disk Drives

Part Specific Options

This part has the following options to purchase.

Refurbished
Call for stock

9BE012-667
Refurbished
Call for stock

9DC046-500
Refurbished
Call for stock

9DC046-501
Refurbished
Call for stock

ST3500630AV product details

Seagate SV35 Series 500GB 3.5" Ultra ATA/100 3.5" Ultra-ATA/100

The Seagate SV35 Series hard drive is the first drive specifically engineered and optimized for digital video recording in security and surveillance applications. Increased SDVR Performance - Increased video data rates (480Mb/s)enable higher-performance video recording. - Optimized to record multiple,simultaneous video streams. - Engineered to maintain high video data integrity. Higher Reliability - Designed for 24x7 operation and high write duty cycles. - 1,000,000 hours MTBF in 24x7 video surveillance applications. - Fewer moving parts. - Lower power consumption. - Reduced heat generation. Tailored for the Video Surveillance Industry - Technical and marketing support infrastructure dedicated to video surveillance customers. - Second-generation SDVR drive — evolving with emerging industry requirements. - Advanced application design and technical advice available through Seagate Design Service Centers in U.S. and Singapore.

Features
Bytes per sector
512
Component for
Surveillance system
HDD capacity
500 GB
HDD size
3.5"
HDD speed
7200 RPM
Interface
Ultra-ATA/100
Linux operating systems supported
Y
Read seek time
17 ms
Start/stop cycles
50000
Storage drive buffer size
16 MB
Track to track seek time
1 ms
Type
HDD
Windows operating systems supported
Y
Write seek time
14 ms
Operational conditions
Non-operating altitude
-60.96 - 12192 m
Non-operating shock
300 G
Operating altitude
-60.96 - 3048 m
Operating relative humidity (H-H)
5 - 90%
Operating shock
63 G
Operating temperature (T-T)
0 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Other features
Drive devices burst data transfer rate (PIO)
0-4
Drive devices burst data transfer rate (Ultra DMA)
0-6
Power
Operating voltage
5 / 12 V
Weight & dimensions
Depth
147 mm
Height
26.1 mm
Weight
635 g
Width
101.6 mm
