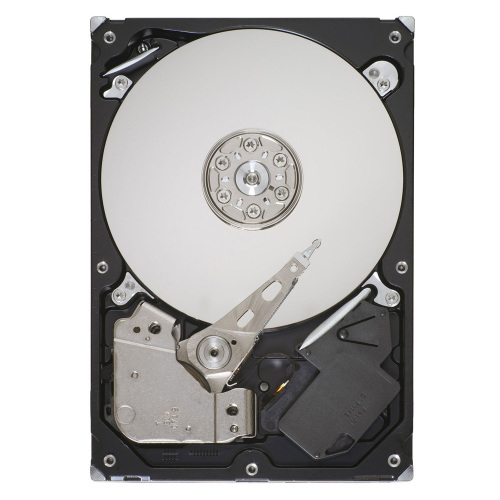

Seagate ST3160812AV 160GB PATA (IDE, UDMA, EIDE) Hard Disk Drives

ST3160812AV product summary

SEAGATE 160GB 3.5TH IDE 7200RPM HDD

Manufacturer
Seagate
Interface Group
PATA (IDE, UDMA, EIDE)
Interface
IDE
Physical Size
3.5in x 25mm
Capacity
160GB
Speed
7,200RPM

Seagate ST3160812AV 160GB PATA (IDE, UDMA, EIDE) Hard Disk Drives

Part Specific Options

This part has the following options to purchase.

Refurbished
Call for stock

9CS032-501
Refurbished
Call for stock

ST3160812AV product details

Seagate Desktop HDD 160GB 3.5" Ultra ATA/100 3.5" Ultra-ATA/100

The Seagate Barracuda 7200.9 is the industry's most comprehensive family of 3.5-inch drives, providing leading technology targeted at PATA servers, mainstream and high-performance PCs/workstations and media PCs. Backed by an industry-leading unprecedented five-year warranty. Benefits - RoHS Compliant. Meets or exceeds all current and proposed environmental standards and legislation - 350 Gs non-operating shock. Protection against handling damage - 3-D Defense System Industry's most comprehensive drive and data protection system - 7,200 RPM. Higher performance and data through-put - 63 Gs operating shock. Robust product for challenging applications - 2.5 bels idle, 2.8 bels seek acoustics. Super-quiet drive is almost inaudible. Difference between idle and seek can hardly be detected by human ear, making drive operation almost silent Distinctions - Best-in-class operating and non-operating shock for excellent reliability - Industry's leading combination of capacity, performance and reliability - Best-in-class idle and seek acoustics for quiet operation - Broadest portfolio of drives - one qualification covers all integrations requirements

Features
Average latency
4.16 ms
Bytes per sector
512
HDD capacity
160 GB
HDD size
3.5"
HDD speed
7200 RPM
Interface
Ultra-ATA/100
Linux operating systems supported
Y
Read seek time
14 ms
Start/stop cycles
50000
Storage drive buffer size
8 MB
Type
HDD
Windows operating systems supported
Y
Write seek time
17 ms
Operational conditions
Non-operating altitude
-60.96 - 12192 m
Non-operating shock
300 G
Operating altitude
-60.96 - 3048 m
Operating relative humidity (H-H)
5 - 90%
Operating shock
63 G
Operating temperature (T-T)
0 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Other features
Acoustic pressure emissions
3 dB
Power
Operating voltage
5 / 12 V
Power consumption (read)
5.7 W
Power consumption (standby)
0.8 W
Power consumption (write)
5.7 W
Start-up current
2 A
Weight & dimensions
Depth
146 mm
Height
26 mm
Weight
580 g
Width
101 mm
