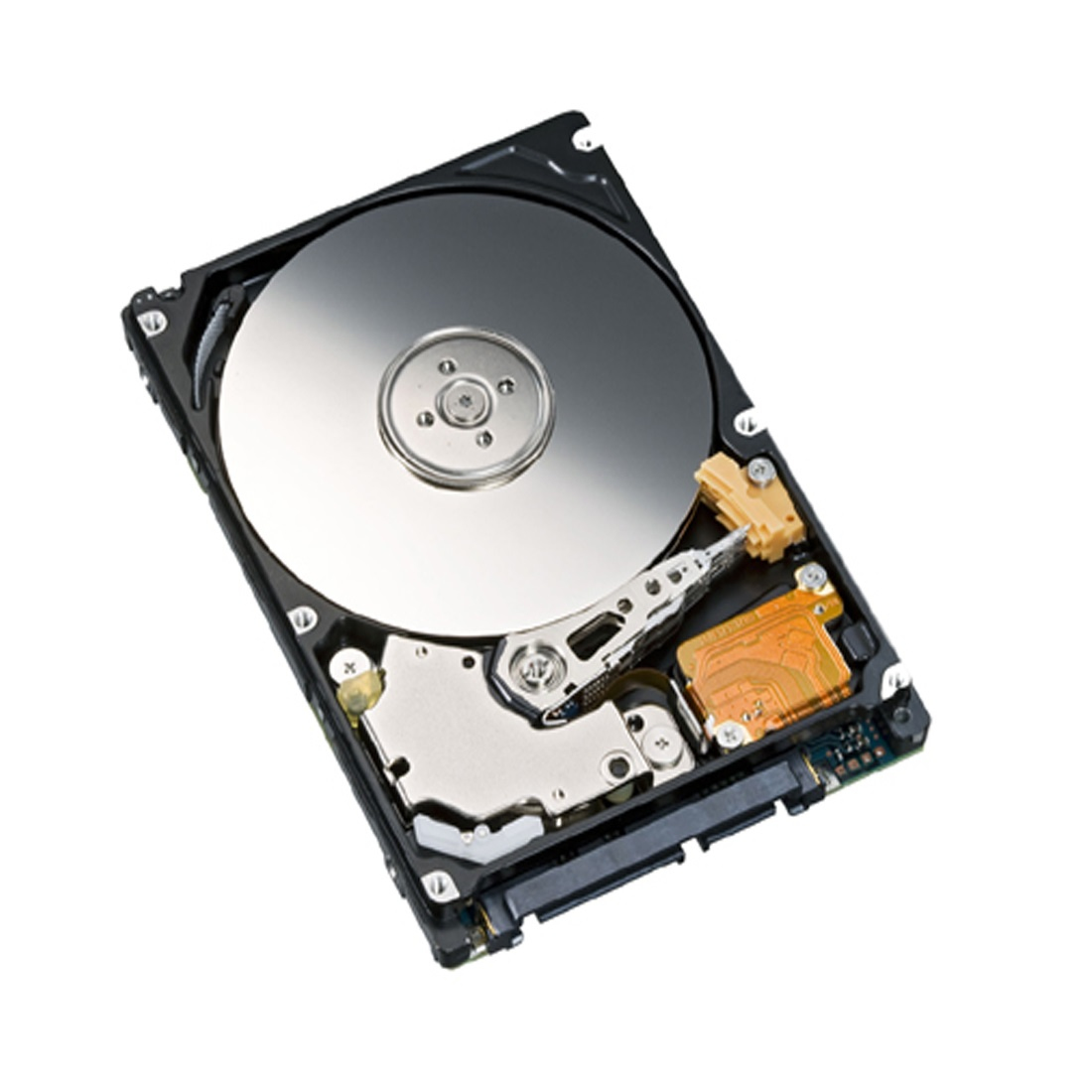

MHW2040AC product summary
FUJITSU 40GB 2.5IN IDE 4200RPM HDD
- Manufacturer
- Fujitsu
- Interface Group
- PATA (IDE, UDMA, EIDE)
- Interface
- IDE
- Physical Size
- 2.5in
- Capacity
- 40GB
- Speed
- 4,200RPM
Fujitsu MHW2040AC 40GB PATA (IDE, UDMA, EIDE) Hard Disk Drives
Part Specific Options
This part has the following options to purchase.
- Refurbished
- 1 in stock
- CA06821-B900
- Refurbished
- Call for stock
MHW2040AC product details
Fujitsu 40GB, 2.5", 4200rpm 2.5" Ultra-ATA/133
Fujitsu Introduces Rugged 2.5'' Hard Disk Drive for Automotive and Other Applications Requiring Operability in Extreme Environments MHW2040AC model 2.5'' hard disk drive (HDD) for use in automotive and various equipment that must operate in harsh environments, ranging from cold climate regions to deserts. The new model will be available on global basis at the end of March, 2007. In addition to their conventional use in PCs, 2.5'' HDDs are used for a wide variety of applications, such as automotive and industrial equipment. Maintaining its status as a leader in developing and offering products to meet a wide range of customer needs, Fujitsu is releasing the MHW2040AC, the third generation of its 2.5'' HDD product line, for use in automotive and other applications under extreme environmental conditions. The new model features a top-class operable temperature range of -30°C (-22°F) to 85°C (185°F). The 40 GB capacity(1) HDD can also withstand operational shock of up to 300 G. It also features best-in-class acoustic noise level of 1.5 bels(2) at idle and low-power consumption, operating at 1.8 watts when reading or writing data. In addition to use in increasingly popular automotive navigation systems, the MHW2040AC is also an ideal option for applications where extreme temperatures have caused difficulty, such as industrial equipment, surveillance cameras, PoS systems and ATMs. It is also RoHS(3) compliant. Main features: - Exceptionally high quality, reliability, robustness and performance. - 2.5-inch, 4,200 RPM Hard Disk Drives feature a Parallel ATA interface and up to 60GB1 of storage capacity. - Supports 24x7 applications. - Operating temperatures as high as 85ºC (185ºF) and as low as -30ºC (-22ºF). - Ideal for outdoor applications such as ATMs, point-of-sale (POS) Systems, auto-ticketing machines, and automotive GPS devices and marine navigation systems.
Features
- Average latency
- 7.14 ms
- Bytes per sector
- 512
- HDD capacity
- 40 GB
- HDD size
- 2.5"
- HDD speed
- 4200 RPM
- Interface
- Ultra-ATA/133
- Mean time between failures (MTBF)
- 300000 h
- Read seek time
- 12 ms
- Storage drive buffer size
- 8 MB
- Track to track seek time
- 1.5 ms
- Type
- HDD
- Write seek time
- 14 ms
Operational conditions
- Non-operating altitude
- -300 - 12000 m
- Non-operating shock
- 900 G
- Non-operating vibration
- 5 G
- Operating altitude
- -300 - 4000 m
- Operating relative humidity (H-H)
- 8 - 90%
- Operating shock
- 300 G
- Operating temperature (T-T)
- -20 - 80 °C
- Operating vibration
- 1 G
- Storage relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -40 - 85 °C
Other features
- Acoustic pressure emissions
- 16 dB
- Drive ready time
- 3.5 s
Power
- Operating voltage
- 5 V
- Power consumption (standby)
- 0.2 W
- Power consumption (typical)
- 6 W
Weight & dimensions
- Depth
- 100 mm
- Height
- 9.5 mm
- Weight
- 960 g
- Width
- 70 mm
