J8164A product summary

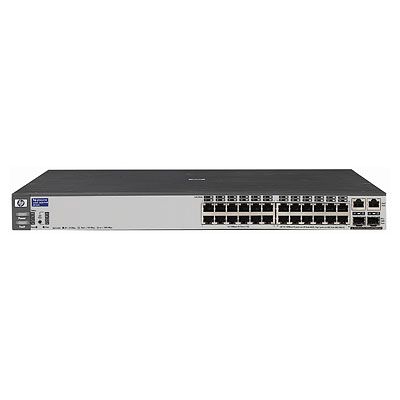

HP PROCURVE SWITCH 2626-PWR J8164A
- Manufacturer
- HP
- Interface Group
- OTHERS
- Interface
- N/A
- Physical Size
- N/A
HP J8164A OTHERS NET
Part Specific Options
This part has the following options to purchase.
- Refurbished
- Call for stock
J8164A product details
HP ProCurve 2626-PWR Power over Ethernet (PoE)
The ProCurve Switch 2600 series is a collection of low-cost, stackable, multi-layer, managed switches with 48, 24, or 8 auto-sensing 10/100 ports and dual-personality ports for 10/100/1000 or mini-GBIC connectivity. The ProCurve Switch 2650-PWR, 2626-PWR, and 2600-8-PWR are IEEE 802.3af-compliant for Power over Ethernet and provide up to 15.4 W per port. A redundant external power supply is also available as an accessory.
Features
Data transmission
- MAC address table
- 8000 entries
- Maximum data transfer rate
- 1 Gbit/s
- Supported data transfer rates
- 10/100/1000 Mbps
- Switching capacity
- 9.6 Gbit/s
- Throughput
- 6600000 pps
Design
- Certification
- FCC A; VCCI A; EN 55022/CISPR 22 A
- Safety
- CSA 22.2 950; cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3; UL 60950
Management features
- MIB support
- RFC 1213/1493/2021/2096/2613/2618/2665/2668/2674/2737/2863
Multicast features
- Multicast support
- Y
Network
- 10G support
- N
- Auto MDI/MDI-X
- Y
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Flow control support
- Y
- Full duplex
- Y
- Link aggregation
- Y
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
- Spanning tree protocol
- Y
Operational conditions
- Heat dissipation
- 2155 BTU/h
- Operating relative humidity (H-H)
- 15 - 95%
- Operating temperature (T-T)
- 0 - 50 °C
- Storage relative humidity (H-H)
- 15 - 95%
- Storage temperature (T-T)
- -40 - 70 °C
Other features
- Connectivity technology
- Wired
- Dimensions (WxDxH)
- 442.5 x 458 x 445 mm
- Input frequency
- 50 - 60 Hz
- Latency
- <12 µs
- Networking features
- Fast Ethernet
Performance
- Built-in processor
- Y
- Flash memory
- 8 MB
- Internal memory
- 32 MB
- Noise level
- 53 dB
- Processor frequency
- 266 MHz
- Processor model
- PowerPC MPC8245
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Console port
- RS-232
- Gigabit Ethernet (copper) ports quantity
- 2
Power
- Input voltage
- 100 - 240 V
- Power consumption (typical)
- 631 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Y
Protocols
- Management protocols
- SNMPv1/v2c/v3, LLDP-MED, ANSI/TIA-1057 LLDP, RFC 3164 BSD, RFC 2819, IEEE 802.1AB
Security
- Security algorithms
- 802.1x RADIUS,SSH,SSL/TLS
- SSH/SSL support
- Y
Weight & dimensions
- Weight
- 6.81 kg
