GS2210-24HP product summary
ZYXEL GS2210-24HP - SWITCH - 24 PORTS - MANAGED -
- Manufacturer
- Zyxel
- Interface Group
- OTHERS
- Interface
- N/A
- Physical Size
- N/A
Zyxel GS2210-24HP OTHERS NET
Part Specific Options
This part has the following options to purchase.
- Refurbished
- Call for stock
GS2210-24HP product details

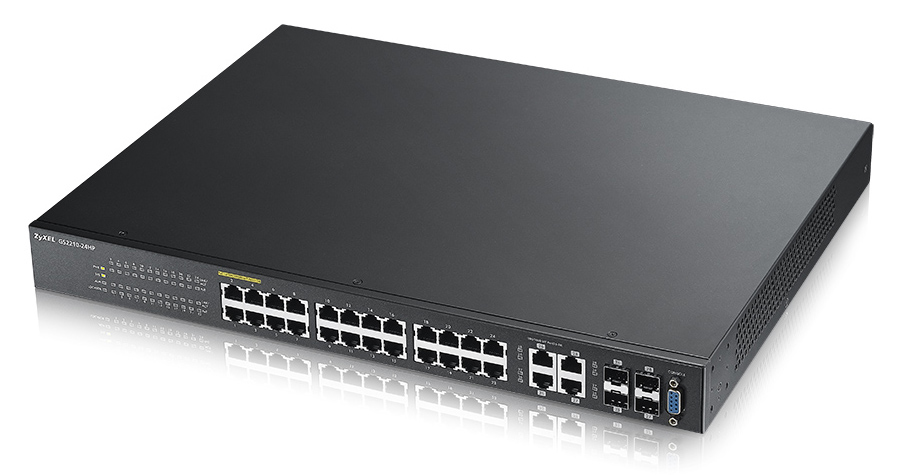

Zyxel GS2210-24HP network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
- Fully managed Layer 2 switching solution - GbE RJ-45 and GbE SFP connectivity - Complies with IEEE 802.3af PoE and 802.3at PoE Plus - High 375 W power budget - L2 multicast, IGMP snooping, MVR and voice VLAN for convergence - Enhanced network protection with IP source guard, DHCP snooping, ARP inspection, CPU protection - L2, L3 and L4 filtering, MAC freeze, port isolation, guest VLAN for improved isolation and access control - Future-proofed with IPv6 support - Supports ZON Utility and ZyXEL One Network inter-device features for easier, more efficient setup and management
Data transmission
- MAC address table
- 1000 entries
- Number of queues
- 8
- Switching capacity
- 56 Gbit/s
- Throughput
- 41.67 Mpps
Design
- Electromagnetic compatibility
- FCC 15 (A), CE (A), BSMI
- Form factor
- 1U
- Product colour
- Black
- Rack mounting
- Y
- Reset button
- Y
- Safety
- LVD, BSMI
- Stackable
- Y
Management features
- ARP inspection
- Y
- MIB support
- RFC 2464, RFC 4291, RFC 4213, RFC 4443, RFC 1981, RFC 5095, RFC 4861,
- Quality of Service (QoS) support
- Y
- Switch layer
- L2
- Switch type
- Managed
- Traffic shaping
- Y
Multicast features
- Multicast MAC address table
- 16000 entries
- Multicast support
- Y
Network
- Broadcast storm control
- Y
- Flow control support
- Y
- IP routing
- Y
- Link aggregation
- Y
- MAC address auto-learning supported
- Y
- Networking standards
- IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Port mirroring
- Y
- Rate limiting
- Y
- Spanning tree protocol
- Y
- Virtual LAN features
- Private VLAN,Protocol-based VLAN,Port-based VLAN
- VLAN support
- Y
Operational conditions
- Heat dissipation
- 1625.55 BTU/h
- Operating relative humidity (H-H)
- 10 - 95%
- Operating temperature (T-T)
- 0 - 50 °C
- Storage relative humidity (H-H)
- 10 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
Packaging data
- Cables included
- AC
- Package depth
- 451 mm
- Package height
- 98 mm
- Package weight
- 5.9 kg
- Package width
- 583 mm
- Rack mount kit
- Y
Performance
- Mean time between failures (MTBF)
- 949326 h
- Noise level
- 59.6 dB
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity
- 4
Power
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 476.7 W
- Power consumption (typical)
- 375 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- N
Security
- Access Control List (ACL)
- Y
- Authentication
- MAC-based authentication
- BPDU filtering/protection
- Y
- DHCP features
- DHCP client
- IGMP snooping
- Y
- MAC address filtering
- Y
- Security algorithms
- 802.1x RADIUS,SNMP,SSH,SSL/TLS
- SSH/SSL support
- Y
Weight & dimensions
- Depth
- 330 mm
- Height
- 44.5 mm
- Weight
- 4.79 kg
- Width
- 440 mm
