FS108 product summary
NETGEAR 8PORT 10/100 FAST ETHERNET DESKTOP SWITCH
- Manufacturer
- Netgear
- Interface Group
- OTHERS
- Interface
- N/A
- Physical Size
- N/A
Netgear FS108 OTHERS NET
Part Specific Options
This part has the following options to purchase.
- Refurbished
- Call for stock
FS108 product details

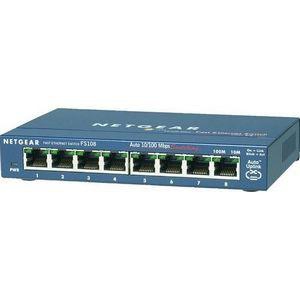

NETGEAR FS108 network switch Unmanaged Power over Ethernet (PoE) Blue
Solid Network Performance for Growing Businesses NETGEAR’s popular FS100 series desktop switches, known for its reliability and performance, provide your LAN with high-speed, 10/100 Mbps auto-sensing connectivity for as many as 5, 8, or 16 users. Just plug in your Ethernet cables, connect a power cord, and you’re ready to go-there’s no software to configure. They negotiate to the fastest possible connection and with Auto Uplink™ technology, these switches automatically figure out if the link needs a straightthrough or cross-over connection, and makes the right choice. Existing 10BASE-T devices are easily integrated within higher bandwidth environments, with full wire speeds on all ports of either 10 Mbps or 100 Mbps. Engineered without the need for internal fans, they operate silently. And each of these very compact switches is housed in a sturdy metal case for years of dependable use. When you want solid network performance for your growing business, plus the added benefit of quiet operation, NETGEAR’s ProSafe FS105, FS108, and FS116 are your best choices for quality, convenience, and smooth — running usability — all at very affordable prices. At Your Service Five, eight, or sixteen ports provide LAN access for many users. Every port supports up to 200 Mbps in dedicated bandwidth and traffic is forwarded flawlessly with automatic flow control. Compact Solidly built in small sizes that are easy to position when space is at a premium. Ideal for conference rooms, class rooms, study groups or small offices. Place it on any flat surface or use the included wall mount kit to tuck it out of the way. Simple To Use Once you connect the hardware, your switch is operating! Auto negotiation takes care of the speed and duplex, while Auto Uplink takes care of the MDI/MDI-X connection. Eliminate the need for toggle switches or special crossover cables. Quiet No fan means no noise, which helps maintain a peaceful atmosphere in your busy office.
Data transmission
- MAC address table
- 1000 entries
- Maximum data transfer rate
- 0.1 Gbit/s
- Packet buffer memory
- 0.096 MB
Design
- Product colour
- Blue
- Safety
- UL listed (UL 1950)/cUL; IEC950/EN60950
- Stackable
- Y
Management features
- Switch type
- Unmanaged
Network
- Copper ethernet cabling technology
- 100BASE-TX,10BASE-T
- Full duplex
- Y
- Networking standards
- IEEE 802.3u,IEEE 802.3x
Operational conditions
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 0 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -10 - 70 °C
Other features
- Bandwidth
- 1.6 Gbit/s
- Data transfer rate
- 100 Mbit/s
- Dimensions (WxDxH)
- 158 x 103 x 27 mm
- Electromagnetic emissions
- CE mark, commercial; FCC part 15 Class A; EN55 022 (CISPR22), Class A; VCCI Class A; C-Tick
- I/O ports
- 8 x 10/100 RJ-45 Ports
- Latency
- 20 µs
- Mounting interface
- 490
- Networking features
- Ethernet/Fast Ethernet
- Power requirements
- 7.5V DC, 1A
Performance
- Compatible operating systems
- Windows Linux Mac OS
- Mean time between failures (MTBF)
- 168000 h
- Minimum system requirements
- - Network card for each PC (e.g. NETGEAR FA311) - Network Cables - Network card for each PC or server - Network software
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
Power
- Power consumption (typical)
- 7.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Y
Protocols
- Data link protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
