D-link DGS-1210-10P OTHERS NET

DGS-1210-10P product summary

D-LINK WEB SMART 10-PORT MANAGED GIGABIT POE SWITC

Manufacturer
D-link
Interface Group
OTHERS
Interface
N/A
Physical Size
N/A

D-link DGS-1210-10P OTHERS NET

Part Specific Options

This part has the following options to purchase.

Refurbished
Call for stock

DGS-1210-10P product details

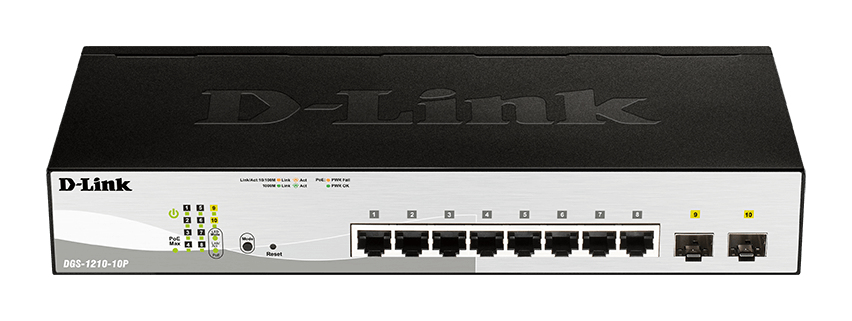

D-Link DGS-1210-10P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Smart Managed with a Plus With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network. Advanced Layer 2 Management with Layer 3 Static Routing The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files. With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments. Fibre Uplinks Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network. PoE and PoE+, with budgets up to 370W The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for business looking to power larger deployments of VoIP phones, wireless access points or network cameras. Free Network Design and Management Software D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis. Smart Energy-Saving Design D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch. Surveillance Mode Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Data transmission
Forwarding rate
14.88 Mpps
MAC address table
8000 entries
Packet buffer memory
0.512 MB
Store-and-forward
Y
Switching capacity
20 Gbit/s
Design
Certification
EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Form factor
1U
LED indicators
Y
Product colour
Black
Rack mounting
Y
Stackable
Y
Management features
Quality of Service (QoS) support
Y
Switch layer
L2
Switch type
Managed
Web-based management
Y
Multicast features
Multicast support
Y
Network
10G support
N
Auto MDI/MDI-X
Y
Cable types supported
Cat5,Cat5e
Copper ethernet cabling technology
10BASE-T,100BASE-T,1000BASE-T
Flow control support
Y
Full duplex
Y
Link aggregation
Y
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Port mirroring
Y
Operational conditions
Heat dissipation
373.96 BTU/h
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Packaging data
Package depth
331 mm
Package height
72 mm
Package weight
2.21 kg
Package width
288 mm
Performance
Mean time between failures (MTBF)
729258 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Power connector
DC-in jack
SFP module slots quantity
2
Power
Power consumption (max)
80.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Total Power over Ethernet (PoE) budget
65 W
Security
Access Control List (ACL)
Y
MAC address filtering
Y
Technical details
Master (outer) cases per pallet (air)
36 pc(s)
Master (outer) cases per pallet (sea)
54 pc(s)
Pallet gross length
110 cm
Pallet gross weight (air)
449.5 kg
Pallet gross weight (sea)
662 kg
Pallet gross width
120 cm
Pallet height (air)
140.3 cm
Pallet height (sea)
2.04 m
Products per pallet (air)
180 pc(s)
Products per pallet (sea)
270 pc(s)
Products per shipping (inner) case
5 pc(s)
Shipping (inner) case gross weight
11.8 kg
Shipping (inner) case height
31.7 cm
Shipping (inner) case length
38.2 cm
Shipping (inner) case net weight
11.1 kg
Shipping (inner) case width
34.6 cm
Weight & dimensions
Depth
126 mm
Height
44 mm
Weight
950 g
Width
280 mm
