DGS-1008G product summary

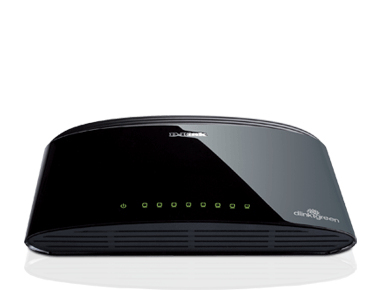

D-LINK DGS-1008G 8-PORT GIGABIT DESKTOP SWITCH
- Manufacturer
- D-link
- Interface Group
- OTHERS
- Interface
- N/A
- Physical Size
- N/A
D-link DGS-1008G OTHERS NET
Part Specific Options
This part has the following options to purchase.
- Refurbished
- Call for stock
- NO SN
- Refurbished
- Call for stock
DGS-1008G product details
D-Link DGS-1008G network switch L3 Black
THINK GREEN Combined with an efficient power adapter that is EnergyStar level V qualified, minimized the use of harmful substances (RoHS compliant) in the device and enclosed in recyclable packaging make this switch truly environmentally friendly. CONSERVES ENERGY The DGS-1008G 8-port Gigabit Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link activity, allowing the switch to save energy by cutting power usage for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths and adjust power usage accordingly, helping you save energy without effecting networking performance. ENVIRONMENTALLY FRIENDLY The 8-port Gigabit Switch was designed with the environment in mind. It is compliant with energy Star level V, as well as with the strict CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
Data transmission
- Jumbo frames support
- Y
- MAC address table
- 4000 entries
- Supported data transfer rates
- 10/100/1000 Mbps
- Throughput
- 1488000 pps
Design
- Certification
- - FCC class B - ICES-003 class B - CE class B - C-Tick class B - VCCI class B - cUL - CB
- LED indicators
- Y
- Product colour
- Black
- Rack mounting
- N
- Stackable
- N
Management features
- Quality of Service (QoS) support
- Y
- Switch layer
- L3
- Web-based management
- Y
Network
- 10G support
- N
- Auto MDI/MDI-X
- Y
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Full duplex
- Y
- Networking standards
- IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operational conditions
- Heat dissipation
- 19.79 BTU/h
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -10 - 70 °C
Other features
- Bandwidth
- 2 Gbit/s
- Cable length
- 100 m
- Connectivity technology
- Wired
- Data transfer rate
- 2000 Mbit/s
- Dimensions (WxDxH)
- 164.5 x 112 x 35 mm
- Mounting
- Wall
- Networking features
- Gigabit Ethernet
- Power LED
- Y
- Wi-Fi
- N
Performance
- Mean time between failures (MTBF)
- 1150498 h
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Power connector
- DC-in jack
Power
- Input current
- 1.2 A
- Input voltage
- 5 V
- Power consumption (typical)
- 5.8 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- N
Protocols
- Supported network protocols
- CSMA/CD
